COIL TRANSPORTER
MAXIMUM PERFORMANCE
Kässbohrer provides reliable solutions for the safe and protected transport of steel coils. With its unique strong and robust chassis, the K.SCC series has a coil-well length of 7,250 mm as the standard design and an option of 9,060 mm, and is suited for the transport of steel coils with diameters of 900 mm to 2,100 mm. The coil well can be closed using a stable cover for transport on pallets, thus guaranteeing maximum efficiency for two transport solutions using one semi-trailer.
Everything from one source: Increased safety for your personnel, your operations and your goods.
Special features, such as the sliding tarpaulin, K-FIX load securing system, options for intermodal and ferry transport, and a lifting roof, extend the functionality of the semi-trailer.
PRODUCT CODES
TERMINOLOGY
All Kässbohrer semi-trailers are manufactured according to lean production and quality principles in consideration of total cost of ownership.
1 BRAND
2 TYPE
3 PRODUCT GROUP
4 PRODUCT SERIE
5 MODEL
6 NECK HEIGHT
7 TRAILER LOAD
8 AXLE LOAD

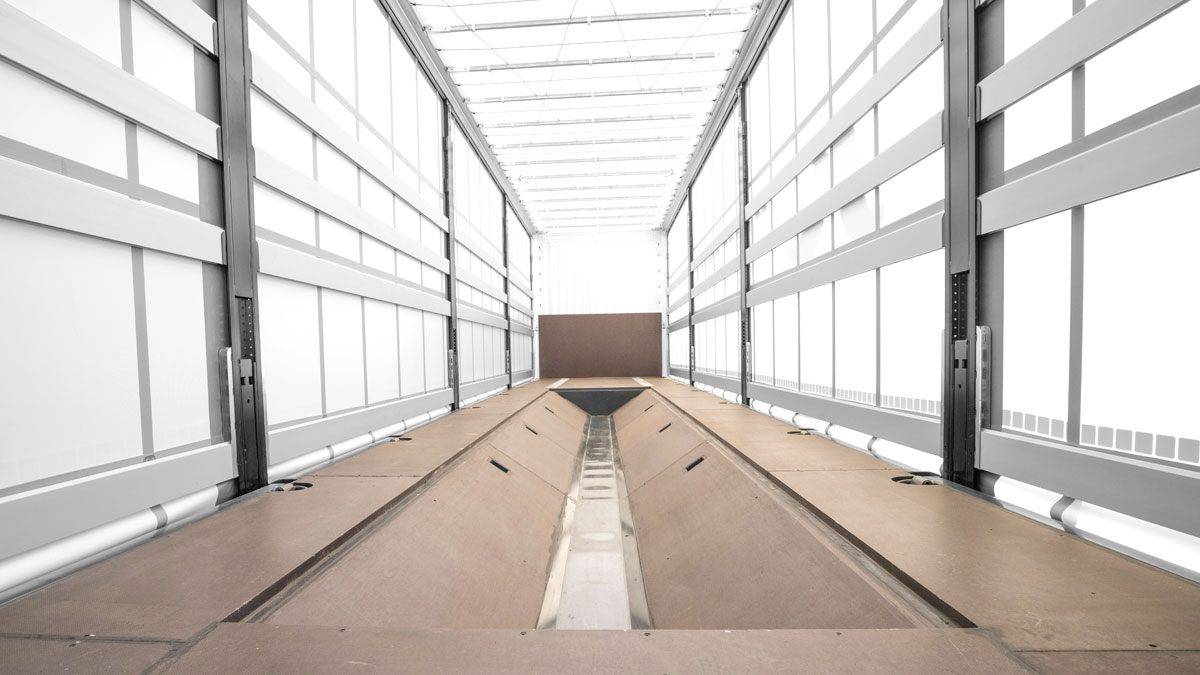

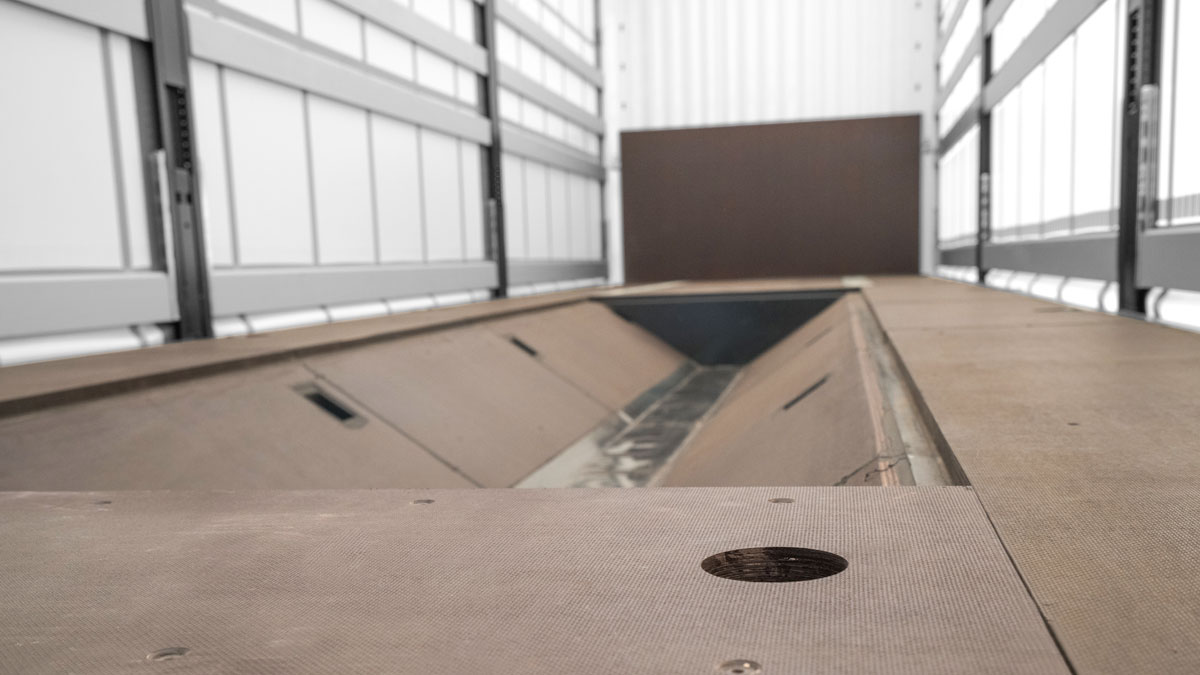

COIL WELLS AND PILLAR POCKETS
The special coil well enables the K.SCCseries to provide a top-quality and
efficient solution for the safe transport
of coils with diameters of 900 mm to
2,100 mm. The K.SCC series is fitted
with 4 pairs of pillar pockets for pillars of
up to 2,300 mm (81mm x 81mm) and
5 pairs of heavy-duty lashing rings with
a capacity of 6,000 kg for maximum
effectiveness in load securing.
FLOOR
30 mm thick plywood floor with a forkliftaxle load of 5,460 kg in accordance with
standard EN 283.

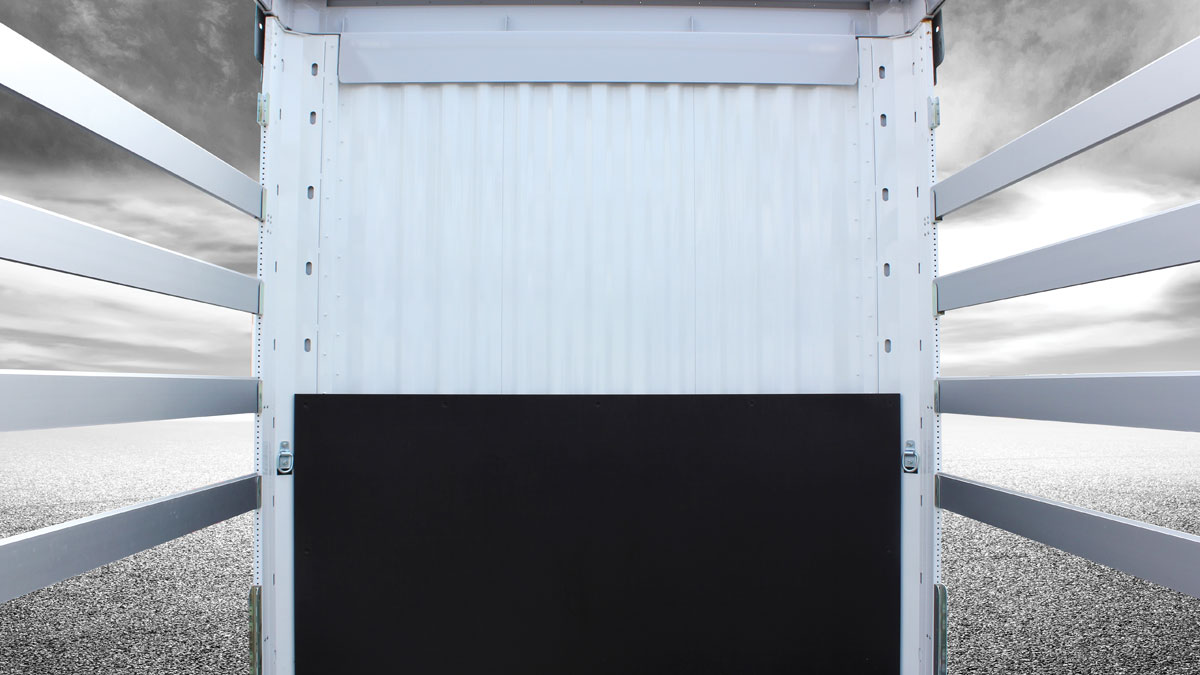

BULKHEAD
Cataphoretic dip coated steel bulkheadwith additional protection by means of a
1,220 mm-high plywood plate and steel
corner supports.
