STEEL
UNIQUE DESIGN FOR EFFICIENT TRANSPORTATION
Kässbohrer tipper semi-trailer, K.SKS, with its high-strength chassis and upper structure stands for reliability and robustness under the hardest load and road conditions. K.SKS series is offered with 2 axles and newly launched lighter construction 3 axles.
K.SKS's robust chassis thanks to cataphoretic dip coating (KTL) process offers durability and persistence throughout the economic life of the vehicle. With kingpin capacity equal to 12.000 kg and unique upper structure design, K.SKS offers the maximum traction performance on the road and ideal load distribution for road safety.
Through the new U-shape of the floor, K.SKS series prevents material residue and ensures fast unloading of bulk materials. 5-step cylinder with a lifting capacity of 250 bar enables operationally efficient loading and unloading.
Engineered to couple with 4 x 2, 6 x 2, 6 x 4 trucks, K.SKS is equipped with the one-touch paving brake system, that is developed for stable unloading operations and with tilt alert system that alerts the drivers on inclined lands, providing operational safety.
PRODUCT CODES
TERMINOLOGY
1 BRAND
2 TYPE
3 PRODUCT GROUP
4 PRODUCT SERIE
5 MODEL
6 VOLUME
7 TRAILER LOAD
8 AXLE LOAD
Maximum Traction Performance and Ideal Load Distribution
Available with 24 m3 and 27 m3 volume options, K. SKS B series are offered with 12 t king pin capacity, new assistant frame and body fix features to provide you the maximum traction performance and ideal load distribution for road safety.

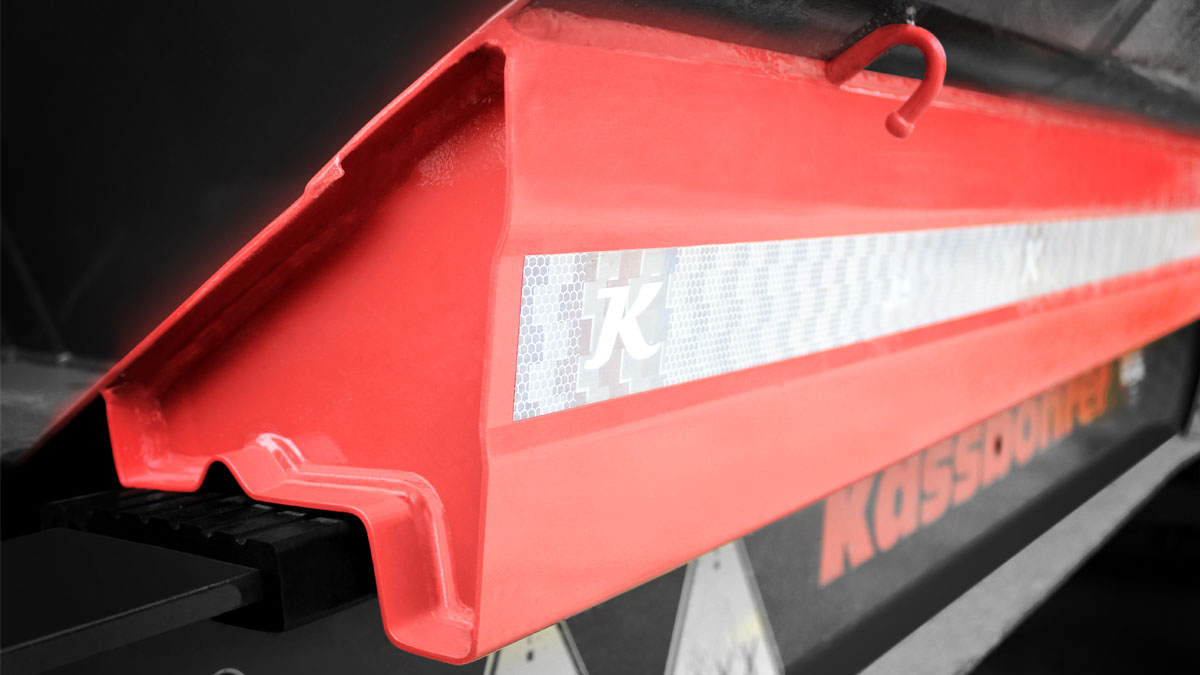

User Friendly Foldable Bumper
New aluminum lightweight bumper ensures easy and safe operation that is designed according to new bumper regulation requirements.

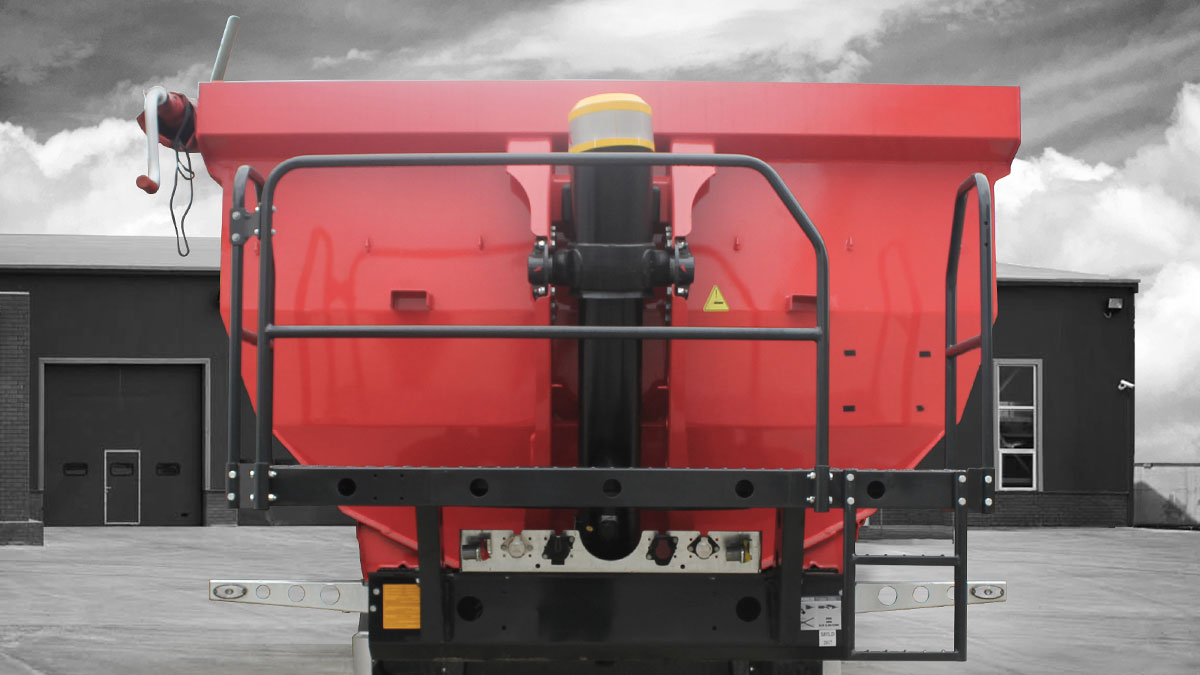

Tipping System
5-step cylinder with a lifting capacity of 250 bar enables operationally efficient loading and unloading.

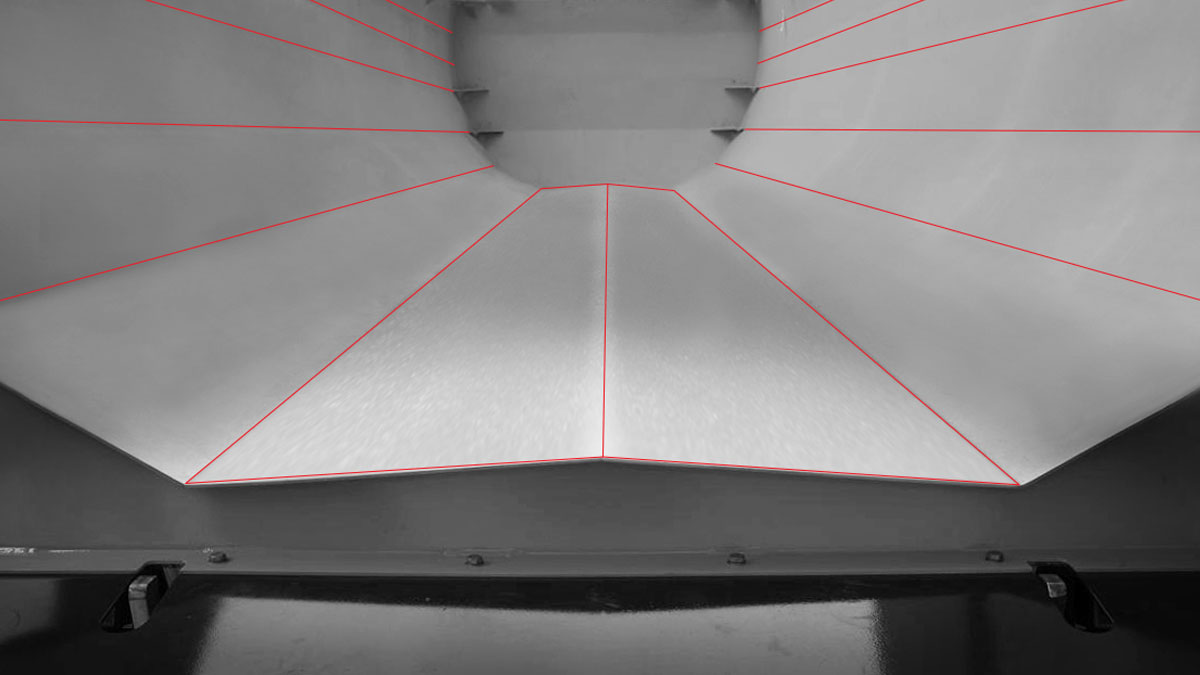

U-shape Floor for Durability and Speed
Through the development of the new «U» shape of the floor, Kässbohrer Tipper prevents material residue and ensures fast unloading of bulk materials while enhancing body durability with its 14 units bending.
Operational Safety Thanks to Wide Tipping Shaft
Specially designed wide tipping shaft provides better stability during your tipping operation by distributing load to a wider area to enhance operational safety.
